Low-Temperature Material Assurance: ASTM A352 LCB/LCC steel ensures impact toughness and mechanical strength at -40°C+, preventing low-temperature brittleness cracks.
Reinforced Valve Body Design: HG/T-compliant structural optimization enhances wall thickness and strength, resisting stress under low temperatures for extended durability.
Flange Precision Customization: Tailored flange adjustments eliminate pipeline dimensional mismatches, ensuring leak-free connections.
Actuator Upgrade Flexibility: ISO 5211-compliant platform supports seamless pneumatic/electric actuator retrofits for system adaptability.
Design and Manufacture: ASME B16.34; ASME VIII; API 609; AWWA
Leakage Class: API 598 (Bi-directional Zero Leakage)
Side Flange Standards: ANSI 125LB/ 150LB; ASME; AS-D/E; BS; DIN; EN PN6/ PN10/ PN16; GB; GOST; HG/T; JIS 5K/ 10K
Top Flange (Actuator Mounting) : ISO 5211; GB 90°
Face-to-Face Dimension: ISO 5752; MSS SP-68; ASME B16.10; EN 558-1; API 609
Testing Standards: API 598; EN 12266-1; ISO 5208; BS 6755-1
Certifications: ISO 9001; CE; BV; API 609; API 598; EAC; SIL3；
Technical description
Download
Q&A
Specification of the Valve |
|
|---|---|
|
Type of Connection |
Wafer |
|
Actuation |
Pneumatic |
|
Size |
1 1/2in ~ 48in (DN40~DN1200) |
|
Pressure |
10bar~20bar (1.0mpa~2.0mpa) |
|
Testing Pressure |
256psi |
|
Medium |
Water, Oil, Gas, Steam, Corrosive Media, Slurry, etc. |
|
Medium Temperature |
-25~180℃ |
Material of the Valve |
|
|---|---|
|
Body |
WCB/ WCC/ LCB/ LCC/ LC1 |
|
Disc |
DI/ CF8/ CF8M/ CF3/ CF3M/ 2205/ 2507/ 1.4529/ HC276/ C95400/ C95800 |
|
Stem |
45#/ SS410/ SS416/ SS420/ SS304/ SS316/ SS316L/ 17-4/ 2205/ 2507/ 1.4529/ K500/ CF8/ CF8M/ HC276 |
|
Soft Seat |
EPDM/ NBR/ SIL/ FKM/ FPM/ VITON/PTFE/ HYPALON/ UHMWPE |
| Coating | Epoxy Resin 200um~250um |

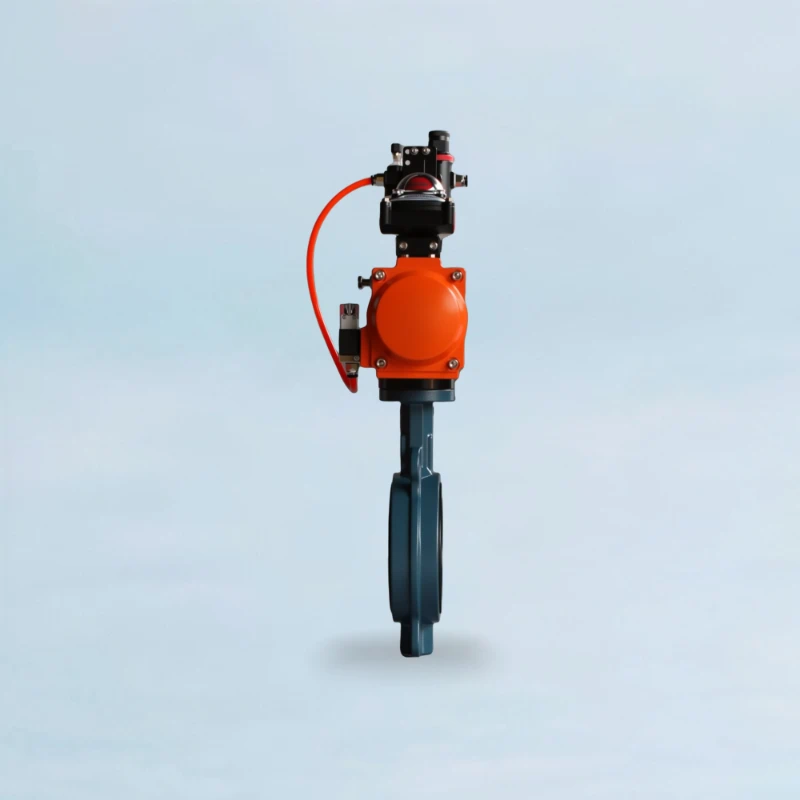

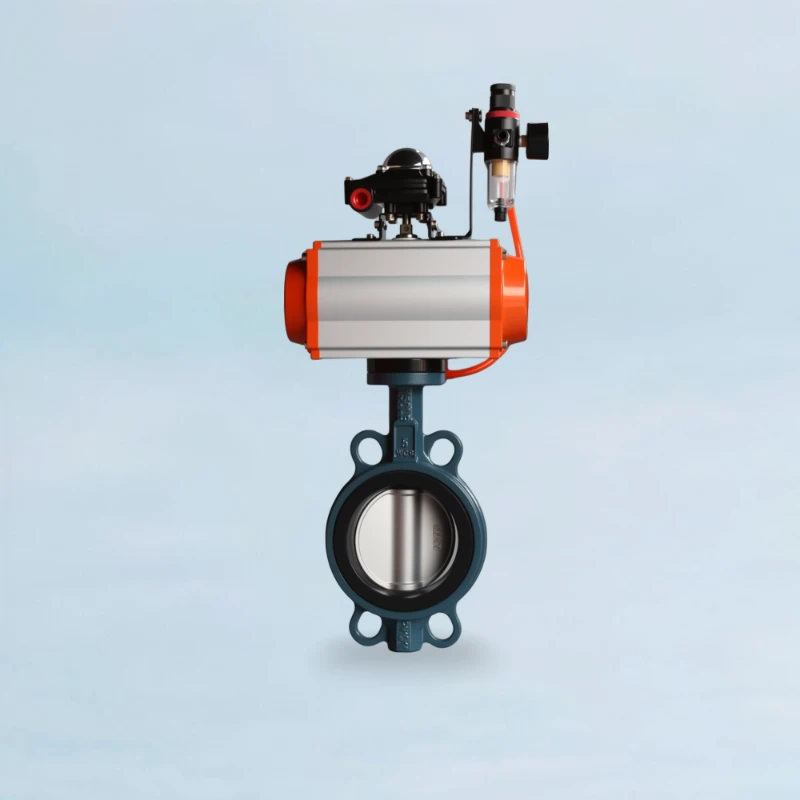

Our pneumatic actuated carbon steel valves are designed for reliable, high-speed automation. By combining a robust valve body with a high-performance actuator, we deliver a complete solution for remote control, emergency shutdown, and precise process modulation in demanding industrial systems.

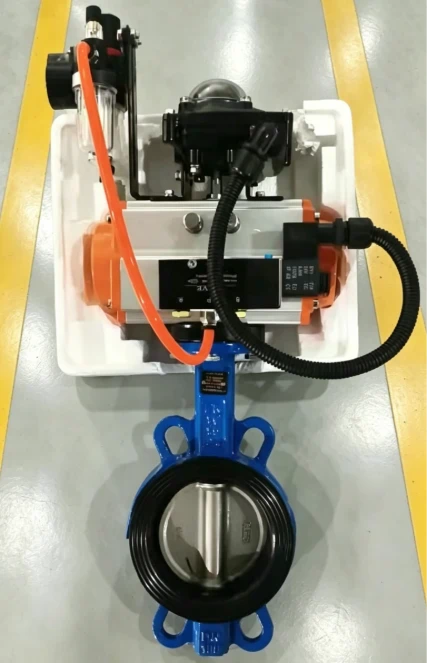

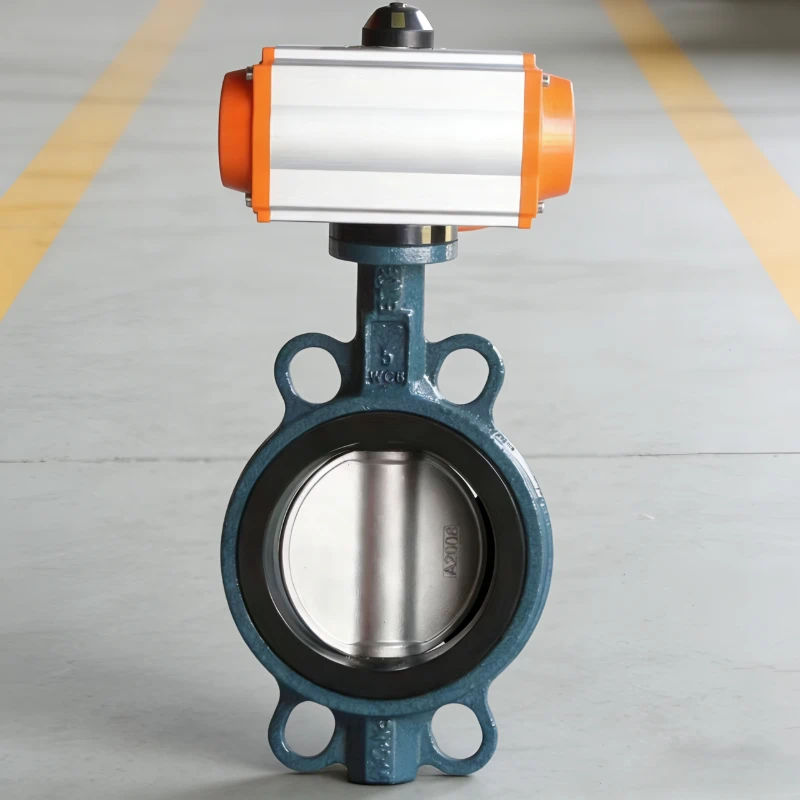

We ensure ultimate reliability by using only certified WCB and LCB carbon steel castings from our foundry. Each valve body is supported by material test reports (MTRs), guaranteeing the structural integrity needed for high-cycle automated applications.
Our rack-and-pinion actuators deliver fast, reliable quarter-turn operation. Available in spring-return (fail-safe) and double-acting models, they integrate seamlessly with PLC/DCS systems for precise and immediate flow control.
A 250μm+ fusion-bonded epoxy coating protects every valve body from external corrosion and impacts. This ensures long-term operational integrity and durability, even in harsh industrial atmospheres or outdoor installations.
Our pneumatic butterfly valves provide dependable, automated control for critical processes across a wide range of industries, enhancing efficiency, safety, and operational reliability.
In chemical plants, rapid response is critical for safety and process integrity. Our valves, when specified as a Ptfe Lined Butterfly Valve, provide fast-acting isolation for corrosive media, integrating seamlessly into automated safety shutdown systems.
For automated processes like filter backwashing and chemical dosing, reliability is key. The simple, robust design of our Wafer Type Butterfly Valve allows for quick installation and provides dependable, repeatable control in municipal and industrial water treatment facilities.
Our valves are ideal for large-scale climate control systems. As an efficient Hvac Butterfly Valve, it integrates directly with Building Management Systems (BMS) to automatically regulate chilled water and heating loops, optimizing energy consumption.
In automated batching and Clean-in-Place (CIP) utility systems, precise and hygienic control is essential. An Epdm Seat Butterfly Valve with a pneumatic actuator ensures rapid, contamination-free operation for water, glycol, and other process utilities.
Cooling water intake systems and auxiliary lines in power plants require reliable, remote flow control. A pneumatically actuated Large Diameter Butterfly Valve ensures swift and secure isolation of major water lines during routine operations or emergencies.
Managing abrasive stock and corrosive liquors demands robust automation. Configured as a Butterfly Valve For Slurry Application, our pneumatic valves provide consistent, hands-free control, minimizing maintenance and maximizing uptime in harsh mill environments.
For utility systems supporting pharmaceutical production, such as purified water (WFI) loops, precision is paramount. Understanding how a Butterfly Valve With Pneumatic Actuator Working allows for its integration into automated systems to ensure accurate, repeatable, and documented batch processing.
Dewatering circuits and slurry transport lines in mines rely on durable, automated valves. A Rubber Lined Butterfly Valve paired with a powerful pneumatic actuator can reliably handle abrasive media, automating flow paths to optimize mineral recovery.
For non-critical plant utilities like firewater systems, instrument air, and cooling water, dependable automated valves are essential. As a leading Api 609 Butterfly Valve Manufacturer, we provide certified solutions that ensure plant safety and operational readiness.
Our pneumatic butterfly valves excel in environments where speed, reliability, and remote control are critical for enhancing process efficiency and plant safety.
Perfect for modern factories, our actuated butterfly valve integrates flawlessly with PLCs and DCS for precise, automated modulation and on/off control, forming the backbone of efficient process loops.
Equipped with a spring-return actuator, our valves provide fail-safe operation, instantly closing or opening upon loss of air pressure or signal. Trusted pneumatic butterfly valve manufacturers design these for critical safety applications.
For valves installed in high pipe racks or confined spaces, pneumatic actuation eliminates the need for manual access. Our China wafer butterfly valve offers a compact, lightweight solution for easy installation and remote operation.
Designed for durability, the pneumatic actuator and valve assembly withstand frequent opening and closing cycles without performance degradation. As a dedicated wafer butterfly valve manufacturer, we ensure long-term reliability for batching processes.
Pneumatic actuation is inherently spark-free, making it the safe choice for explosive or flammable atmospheres (ATEX zones). This makes our industrial butterfly valve suitable for chemical plants, refineries, and mining sites.
In processes requiring multiple valves to operate in a coordinated sequence, pneumatic control provides the rapid and precise response needed for perfect timing. A reliable concentric butterfly valve supplier ensures consistent performance across all units.
While the carbon steel body provides robust, economical strength, our ability to customize internal disc and seat materials ensures reliable automated performance in a wide range of corrosive services.
For applications involving chlorinated or treated water, standard EPDM can degrade. We specify a Hypalon seat butterfly valve for superior resistance to oxidation and chemical attack, ensuring long life in disinfection processes.
In chemical dosing and light processing, broad chemical resistance is essential. A PFA lined butterfly valve provides an inert barrier, protecting valve internals from a wide spectrum of corrosive chemicals and ensuring process purity.
To combat corrosion in coastal installations or on ships, our valves feature a Duplex steel or Ni-Al-Bronze disc with a thick epoxy coating. This makes it a durable marine butterfly valve built to withstand saltwater spray and high humidity.
Ozone is a powerful oxidizer that rapidly degrades common elastomers. For these advanced water treatment applications, a butterfly valve viton seat (FKM) is essential, providing excellent resistance to ozone and ensuring long-term sealing integrity.
When handling slurries containing both abrasive particles and corrosive chemicals, a tough, resilient lining is required. Our wholesale wafer butterfly valve can be configured with a thick rubber lining to resist both wear and chemical attack simultaneously.
Demineralized water is aggressive and can leach materials. As experienced China pneumatic butterfly valve suppliers, we recommend a polished SS316L disc with an EPDM or PTFE seat to prevent ionic contamination and maintain water purity.
Automating a Chemical Batching System for a Thai Specialty Chemicals Plant
Client: A mid-sized specialty chemical manufacturer in Thailand.
Project: Upgrading a manual chemical batching process to a fully automated system to improve product consistency and operational safety.
Product: 45 units of Pneumatic Actuated Carbon Steel Wafer Butterfly Valves (DN80-DN200), specified with WCB Body, SS316 Disc, and PTFE Seat for chemical compatibility.
The client's primary objective was to eliminate batch-to-batch inconsistencies caused by manual valve timing errors. However, their past experience with low-cost actuated valves was poor, marked by premature failures at the actuator-stem connection and seat leakage after only a few thousand cycles. Quotations from premium European brands were approximately 40% over the project's capital expenditure budget. The challenge was to find a manufacturing partner who could provide a reliable, high-cycle automation solution that was both technically robust and financially viable, avoiding the pitfalls of sourcing from typical trading companies.
JRVAL was selected based on our vertical integration as a foundry-direct manufacturer, which allowed us to provide verifiable quality control from raw material to final assembly. Our solution focused on addressing the client's specific technical pain points.
As a manufacturer with a 20-year casting heritage, we controlled the entire material lifecycle. We provided EN 10204 3.1 Material Test Certificates (MTCs) for each heat of the ASTM A216 WCB castings. Our internal standard ensures the chemical composition, particularly carbon and manganese levels, is maintained in the upper quartile of the ASTM standard, which enhances structural integrity and durability in high-cycle applications. This level of transparency gave the client's engineering team complete confidence in the valve body's material foundation.
Recognizing the client's previous failures, we focused on the mechanical interface. The valve stem's square drive and the pneumatic actuator's output shaft were CNC-machined to a tolerance of ±0.05mm. This precision fit minimizes mechanical play, significantly reducing shear stress and eliminating the primary failure mode of connection wear common in less precisely assembled units. Each assembled valve underwent a 50-cycle operational test at our facility before shipment.
Our integrated manufacturing model enabled us to provide the complete solution at a price point that resulted in a 28% cost saving compared to the initial European quotes, successfully bringing the project within budget. Leveraging our 81,426 m² facility and 11 key CNC centers, we managed a production lead time of 7 weeks for the full order, delivering 3 weeks ahead of the client's 10-week installation deadline.
Each of the 45 valves underwent a hydrostatic shell test at 1.5x PN16 and a bi-directional seat test at 1.1x PN16, achieving zero leakage which exceeds the requirements of API 598 Rate A. A complete documentation package, including MTCs, dimensional inspection reports from calibrated instruments, and individual pressure test certificates, was provided. We openly state that client-appointed third-party inspections (e.g., SGS, Bureau Veritas) are welcomed at our facility at the client's expense, demonstrating our confidence in our processes.
We supported our product with a 24-month warranty covering the entire valve and pneumatic actuator assembly. We guarantee free spare part replacement for any quality issues within this period. Our design adheres to international standards, ensuring that wear parts like seats and seals can be easily sourced from the market after the warranty period, thus optimizing the Total Cost of Ownership (TCO) from a maintenance perspective. Our technical team remains available for online support to assist with any operational queries.
Our commitment to quality is verified by internationally recognized standards. We provide the documentation to prove it.
Ready for your automated application?
We engineer the valve and actuator as a unified system for maximum longevity in high-cycle applications. Reliability is built-in through:
To ensure optimal performance and prevent oversizing (cost) or undersizing (failure), we require the following key parameters:
As a foundry-direct manufacturer with 20 years of casting expertise, we offer unparalleled material control:
Absolutely. Our wafer butterfly valves feature a universal body design. The body dimensions and alignment holes are precision-machined to ensure a perfect fit and reliable seal between a wide range of flange standards, including ANSI B16.5 Class 150, DIN PN10/PN16, and JIS 10K/16K. This eliminates alignment issues and simplifies installation in global projects.
We provide a comprehensive 24-month warranty covering defects in materials and workmanship for the entire assembly (valve and factory-fitted pneumatic actuator). Because our valves are built to international standards, wear parts like seats are easily sourced and replaced post-warranty, ensuring a low total cost of ownership. Our technical team is available online for prompt troubleshooting and support.
