Your expert guide to selecting the right Fluoropolymer Lined Butterfly Valve. From standard PTFE to high-pressure RPTFE and high-performance PFA options, handle aggressive media with the unmatched quality of JRVAL's manufacturing.
PTFE (Polytetrafluoroethylene) liners offer a unique combination of properties that make them the superior choice for demanding applications. PTFE is widely known by the brand name Teflon™, a registered trademark of The Chemours Company. We can supply valves with genuine Teflon™ materials upon request.
PTFE is virtually immune to all chemicals, including strong acids, bases, solvents, and chlorides, preventing liner degradation and ensuring long service life.
The smooth, non-porous surface of PTFE prevents media buildup and contamination, making it ideal for food & beverage, pharmaceutical, and semiconductor applications.
PTFE has one of the lowest coefficients of friction of any solid, reducing operating torque. This allows for smaller, more cost-effective actuators and smoother operation.
PTFE lined valves can handle a broad spectrum of temperatures, typically from -29°C to 200°C (-20°F to 400°F), making them suitable for both cold service and hot chemical processes.
Lug-style valves feature threaded inserts, allowing them to be bolted to one flange for dead-end service. This design is crucial for applications where downstream piping may be disconnected for maintenance under upstream pressure.
The base valve assembly for automation, providing maximum corrosion resistance and guaranteed dimensional accuracy from a zero-porosity casting.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
For quick, manual quarter-turn operation. Combines dead-end service versatility with maximum corrosion resistance.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Size: DN40~DN200 [1 1/2in ~ 8in]; Pressure: PN6, PN10, PN16
View Details Compare Liner Materials
Ideal for larger sizes or high-torque applications, providing precise manual control and throttling capability.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Size: DN40~DN1200 [1 1/2in ~ 48in]; Pressure: PN6, PN10, PN16
View Details Compare Liner Materials
For fast-acting, automated process control in corrosive environments. Available in spring-return or double-acting configurations.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Size: DN40~DN1200 [1 1/2in ~ 48in]; Pressure: PN6, PN10, PN16
View Details Compare Liner Materials

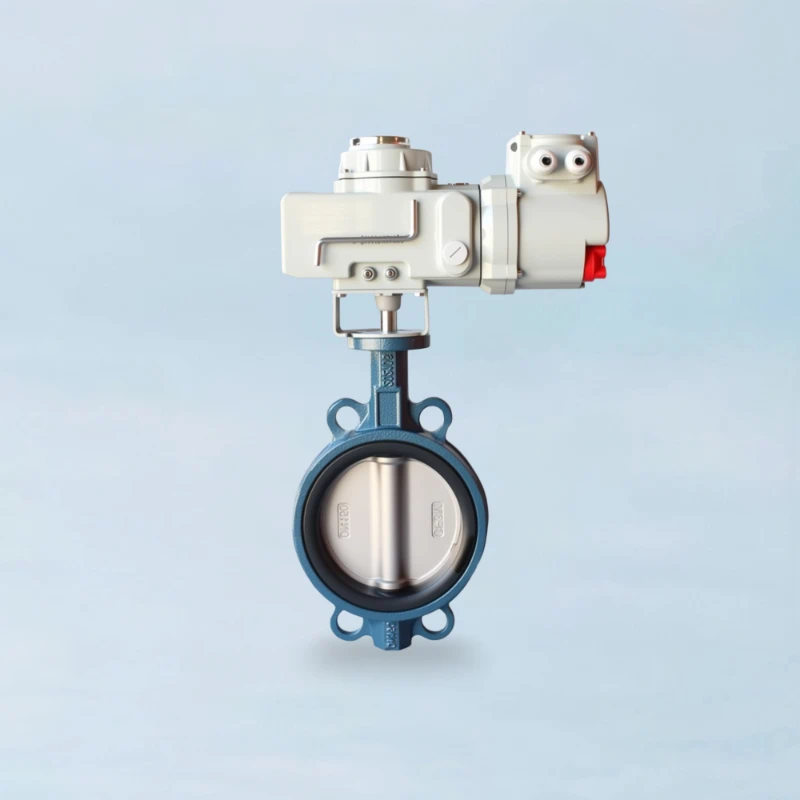

Offers precise, remote-controlled actuation for integration with PLC or SCADA systems, ensuring accurate flow control.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Size: DN40~DN1200 [1 1/2in ~ 48in]; Pressure: PN6, PN10, PN16
View Details Compare Liner Materials
The industrial workhorse for dead-end service. This valve provides the strength of carbon steel and installation flexibility with deep-cast markings for full traceability.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
A robust manual valve for quick shut-off in demanding industrial systems requiring dead-end service capability.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Size: DN40~DN200 [1 1/2in ~ 8in]; Pressure: PN6, PN10, PN16
View Details Compare Liner Materials
Provides mechanical advantage for easy and precise operation of large or high-pressure carbon steel lug valves.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Size: DN40~DN1200 [1 1/2in ~ 48in]; Pressure: PN6, PN10, PN16
View Details Compare Liner Materials
Automated solution for high-cycle or remote applications, combining the strength of carbon steel with fast, reliable actuation.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Size: DN40~DN1200 [1 1/2in ~ 48in]; Pressure: PN6, PN10, PN16
View Details Compare Liner Materials
Enables precise modulating control and remote operation for industrial automation systems with dead-end service requirements.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Size: DN40~DN1200 [1 1/2in ~ 8in]; Pressure: PN6, PN10, PN16
View Details Compare Liner MaterialsA highly reliable and economical option, providing excellent strength and durability for a wide range of industrial and municipal chemical applications.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
An economical and durable choice for manual operation in moderately corrosive services requiring dead-end isolation.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Size: DN40~DN200 [1 1/2in ~ 8in]; Pressure: PN6, PN10, PN16
View Details Compare Liner MaterialsProvides reliable and easy manual control for large-scale municipal and industrial chemical process lines.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Size: DN40~DN1200 [1 1/2in ~ 48in]; Pressure: PN6, PN10, PN16
View Details Compare Liner MaterialsA cost-effective automated solution for water treatment and chemical processing plants, offering reliable performance.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Size: DN40~DN1200 [1 1/2in ~ 48in]; Pressure: PN6, PN10, PN16
View Details Compare Liner MaterialsDelivers dependable, remote-controlled actuation for large-scale projects where budget and performance are critical.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Size: DN40~DN1200 [1 1/2in ~ 48in]; Pressure: PN6, PN10, PN16
View Details Compare Liner MaterialsFeaturing two integral flanges that mate directly with pipeline flanges, this design provides the most secure and rigid connection. It is the preferred choice for larger sizes, higher pressures, and critical applications.
The pinnacle of reliability for flanged connections, engineered from zero-porosity castings for critical service in corrosive environments where a leak-proof seal is non-negotiable.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Provides a secure, leak-proof manual valve solution for smaller diameter, critical service pipelines in highly corrosive media.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Size: DN40~DN200 [1 1/2in ~ 8in]; Pressure: PN6, PN10, PN16
View Details Compare Liner Materials
The standard for reliable manual operation on large-diameter, high-pressure, and critical process lines requiring a flanged connection.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Size: DN40~DN1200 [1 1/2in ~ 48in]; Pressure: PN6, PN10, PN16
View Details Compare Liner Materials
The ultimate automated valve for corrosive service, combining the security of a flanged body with the speed and reliability of pneumatic actuation.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Size: DN40~DN1200 [1 1/2in ~ 48in]; Pressure: PN6, PN10, PN16
View Details Compare Liner Materials
Offers precision modulating control for automated chemical processing, ensuring a robust and leak-free performance.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Size: DN40~DN1200 [1 1/2in ~ 48in]; Pressure: PN6, PN10, PN16
View Details Compare Liner Materials
Delivers robust, leak-proof performance for demanding industrial applications where a PTFE liner provides the required corrosion resistance.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
For reliable manual control in industrial systems where a robust, leak-proof flanged connection is essential for operational integrity.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Size: DN40~DN200 [1 1/2in ~ 8in]; Pressure: PN6, PN10, PN16
View Details Compare Liner Materials
A heavy-duty manual valve providing secure, leak-proof performance in high-pressure industrial applications.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Size: DN40~DN1200 [1 1/2in ~ 48in]; Pressure: PN6, PN10, PN16
View Details Compare Liner Materials
The choice for remote automation in critical process lines where a robust flanged body is required for system integrity.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Size: DN40~DN1200 [1 1/2in ~ 48in]; Pressure: PN6, PN10, PN16
View Details Compare Liner MaterialsWafer valves are held in place by pipeline flanges, offering a compact and economical solution. JRVAL elevates this design with heavy-body construction and innovative quick-change seat technology for unmatched performance.
The ultimate wafer valve for demanding applications, featuring a high-density, zero-porosity casting and an enhanced safety margin for superior corrosion and pressure resistance.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Combines rapid manual shut-off with the superior structural integrity of a heavy-walled body for demanding corrosive services.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Size: DN40~DN200 [1 1/2in ~ 8in]; Pressure: PN6, PN10, PN16
View Details Compare Liner Materials
Offers precise throttling and easy manual operation for larger sizes or high-torque applications in corrosive environments.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Size: DN40~DN1200 [1 1/2in ~ 48in]; Pressure: PN6, PN10, PN16
View Details Compare Liner Materials
Delivers high-speed automated performance in corrosive media. Excellent for ESD systems and hazardous environments where intrinsic safety is key.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Size: DN40~DN1200 [1 1/2in ~ 48in]; Pressure: PN6, PN10, PN16
View Details Compare Liner Materials
The ideal solution for automated process control, integrating a robust heavy body design with precise electric actuation for ultimate reliability.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Size: DN40~DN1200 [1 1/2in ~ 48in]; Pressure: PN6, PN10, PN16
View Details Compare Liner Materials
Engineered for high-stress industrial systems, this valve's extra-thick body offers superior resistance to pipeline pressure and mechanical stress, ensuring long-term reliability.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Robust manual control for high-stress industrial systems, leveraging an extra-thick body for enhanced durability and operational safety.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Size: DN40~DN200 [1 1/2in ~ 8in]; Pressure: PN6, PN10, PN16
View Details Compare Liner Materials
Provides mechanical advantage for easy and precise operation of large or high-pressure carbon steel wafer valves in industrial settings.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Size: DN40~DN1200 [1 1/2in ~ 48in]; Pressure: PN6, PN10, PN16
View Details Compare Liner Materials
The ultimate choice for robust, high-cycle automation in demanding industrial pipelines, offering unmatched durability and fast response times.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Size: DN40~DN1200 [1 1/2in ~ 48in]; Pressure: PN6, PN10, PN16
View Details Compare Liner Materials
Enables reliable remote automation in demanding industrial environments, combining the strength of a heavy body with precision electric control.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Size: DN40~DN1200 [1 1/2in ~ 48in]; Pressure: PN6, PN10, PN16
View Details Compare Liner Materials
A premium concentric valve engineered for exceptional performance and aesthetics, combining robust materials with meticulous craftsmanship.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Delivers exceptional manual performance with superior aesthetics, perfect for OEM equipment and high-visibility installations where quality is paramount.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Size: DN40~DN200 [1 1/2in ~ 8in]; Pressure: PN6, PN10, PN16
View Details Compare Liner Materials
Combines precise manual control with the premium craftsmanship of the Signet series for a flawless operational experience and appearance.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Size: DN40~DN1200 [1 1/2in ~ 48in]; Pressure: PN6, PN10, PN16
View Details Compare Liner Materials
Merges the refined aesthetics of the Signet series with high-performance pneumatic automation, ideal for premium OEM equipment and automated systems.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Size: DN40~DN1200 [1 1/2in ~ 48in]; Pressure: PN6, PN10, PN16
View Details Compare Liner Materials
The premier choice for automated systems where both high performance and a refined, professional appearance are critical design factors.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Size: DN40~DN1200 [1 1/2in ~ 48in]; Pressure: PN6, PN10, PN16
View Details Compare Liner MaterialsEngineered for the most demanding services, these valves feature offset disc and shaft geometry to minimize seat wear and operating torque, providing superior sealing and longer life in critical applications.
The high-performance workhorse for demanding industrial processes. Its double-offset design lifts the disc off the PTFE seat upon opening, drastically reducing wear and extending service life. Available Bare Stem or with Worm Gear.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Size: DN40~DN1200 [1 1/2in ~ 48in]; Pressure: PN25 ~ PN63
Engineered for critical applications where fire safety is non-negotiable. This valve features a resilient PTFE seat for primary sealing and a metal backup seat for integrity in fire conditions. All actuator types available.
Liner Options: PTFE (including Teflon™ brand), RPTFE, and PFA available.
Size: DN40~DN1200 [1 1/2in ~ 48in]; Pressure: PN25 ~ PN63
While all our fluoropolymer valves offer exceptional chemical resistance, selecting the right material is key to maximizing performance and service life in your specific application.
The industry standard for corrosion resistance. Virgin PTFE provides a balance of performance and cost-effectiveness for a vast range of applications.
Reinforced PTFE (typically with 15% glass fiber or carbon) is engineered to overcome the mechanical limitations of virgin PTFE.
Perfluoroalkoxy is a premium, melt-processible fluoropolymer that combines the benefits of PTFE with enhanced mechanical properties.
We are not just a supplier; we are your vertically integrated manufacturing partner. From casting to assembly, we control every step to deliver valves that meet the highest international standards for performance and reliability.
ISO9001-2008, BV, and CE certified. We provide complete test reports for material, heat treatment, and mechanical performance with every shipment.

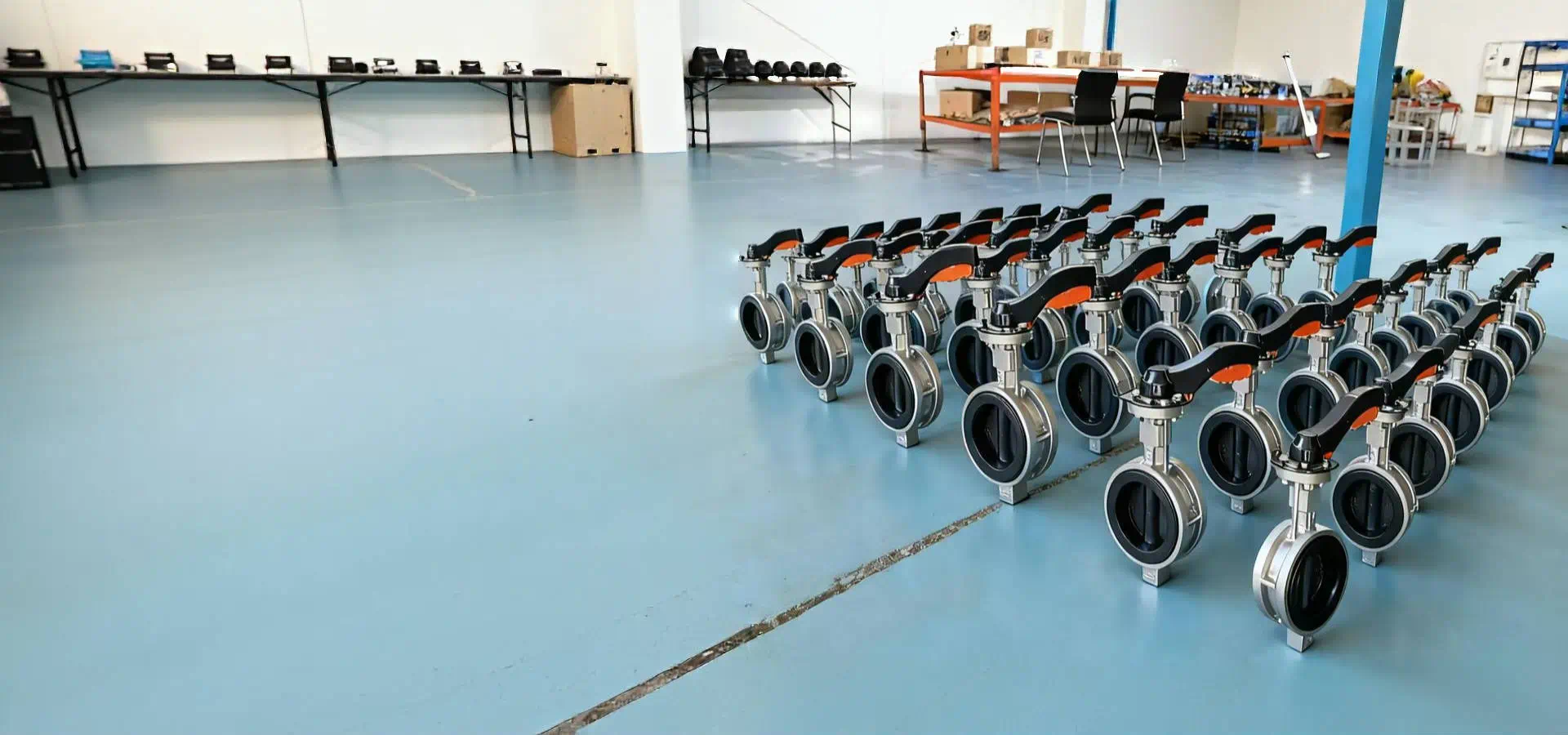

From raw casting and precision machining to final assembly, we control the entire production line. This ensures consistent quality and faster lead times.
Free Samples. Compare our valve quality against any other brand before you purchase. Experience the JRVAL difference firsthand.
With over 2,000 sets of independent machining tooling, we can deliver both standardized and fully customized valve solutions for any application.
We guarantee our valves against non-human damage. Valve body, disc, and seat are all available for new spare parts replacement if needed.
Our engineers are ready to help you select the ideal PTFE lined butterfly valve for your specific application and provide a competitive quote. Contact us today to request your free sample.
Get Your Custom Quote & Free SampleOur engineers provide solutions tailored to your operating environment.
