Premium Materials: MTC certificates + PMI testing ensure material authenticity and compliance.
Thick-Wall Body: Meets chemical industry standards (HG/T), resists corrosion/stress.
Clog-Resistant Structure: Smooth flow path minimizes residue.
Flexible Integration: Customizable flanges & ISO 5211 actuator interfaces for easy retrofitting/upgrades.
Design and Manufacture: GB/T 12238-1989; GOST 12815-1980; GOST 5263-1975
Side Flange Standards: ANSI 125LB/150LB; ASME; AS-D/E; BS PN10/16; DIN PN10/16; EN PN6/10/16/25; GB PN6/10/16; GOST; HG/T PN6/10/16/25; JIS 5K/10K/16K
Top Flange (Actuator Mounting): ISO 5211; GB 90°
Face-to-Face Dimension: ISO 5752；MSS SP-68；ASME B16.10；EN 588-1
Testing Standards: API 598; EN 12266-1; ISO 5208
Certifications: ISO 9001; CE; BV; API 609; API 598; EAC; SIL3；
Technical description
Download
Q&A

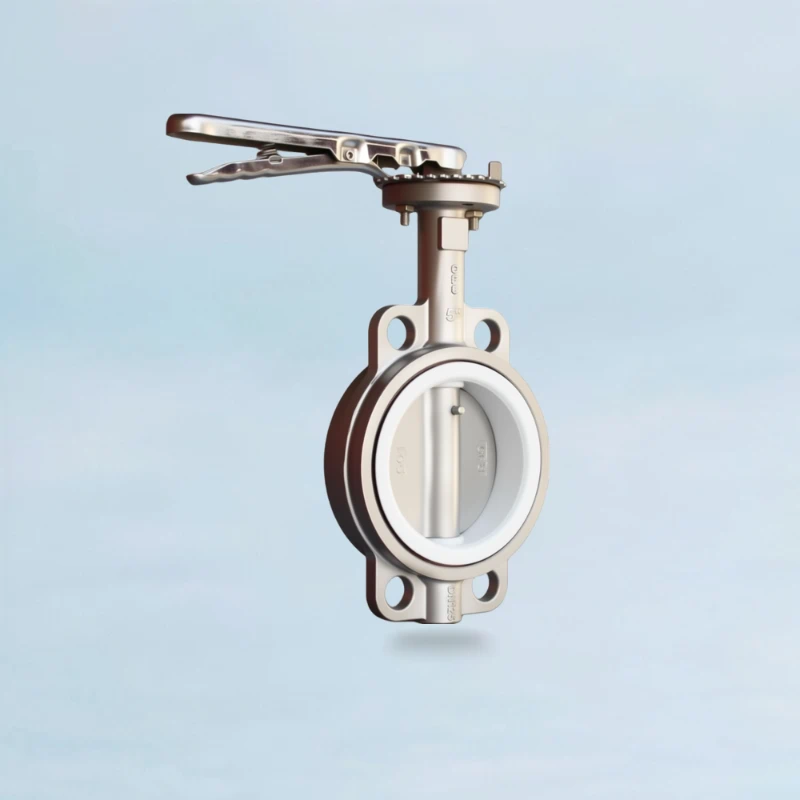

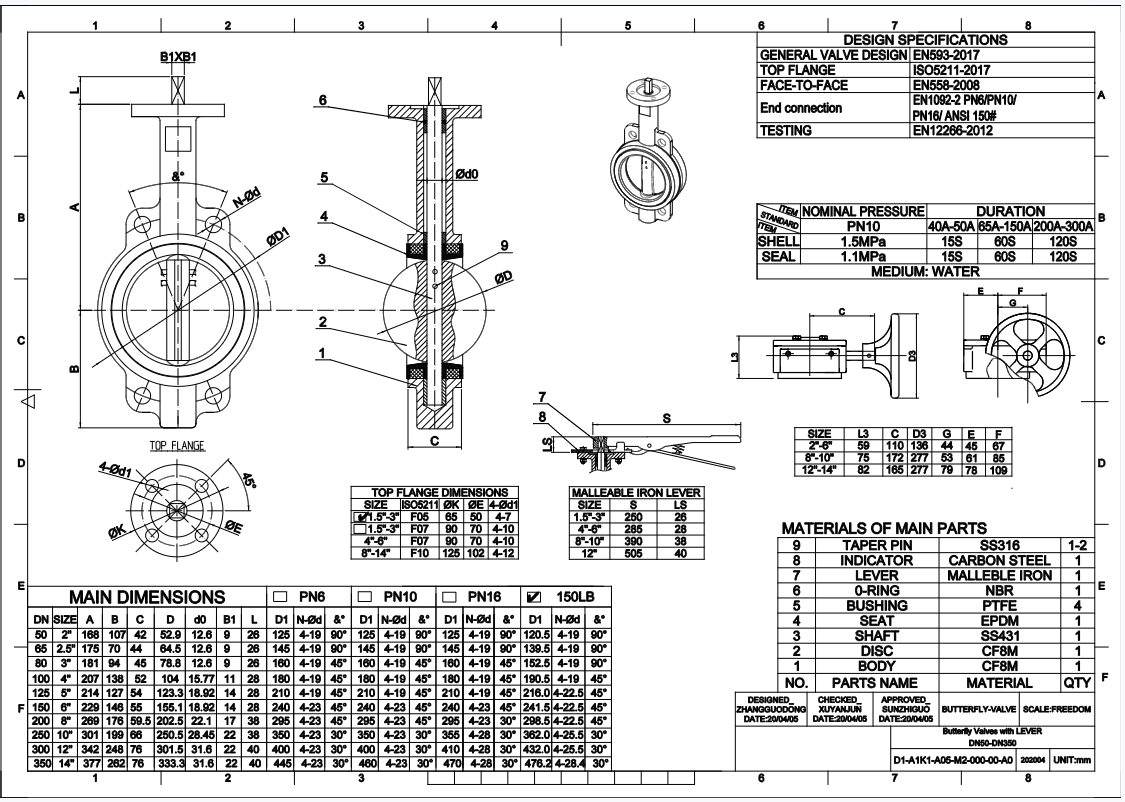

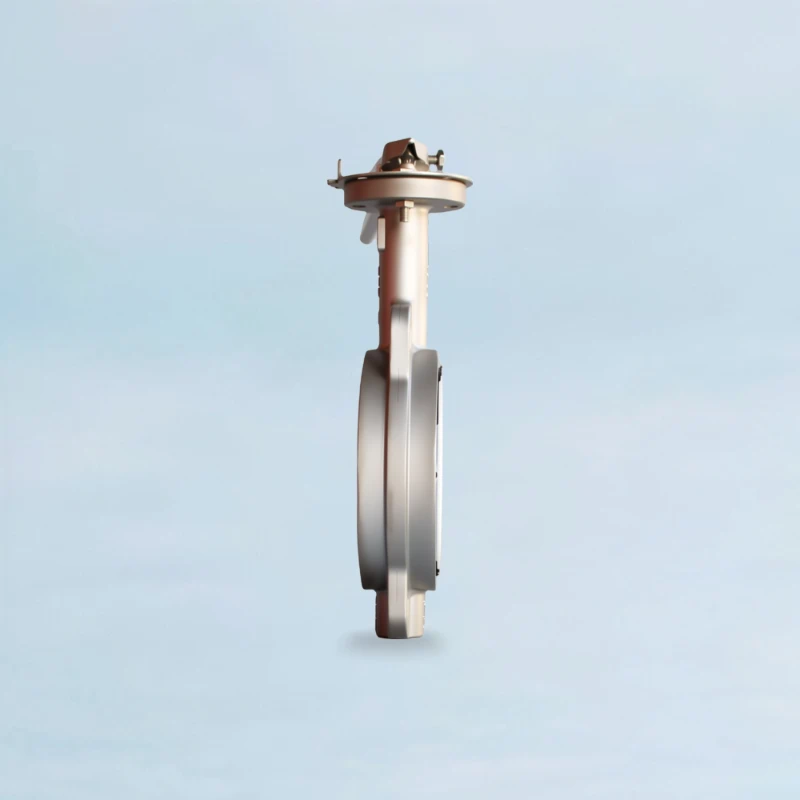

Specification of the Valve |
|
|---|---|
|
Type of Connection |
Wafer |
|
Actuation |
Lever |
|
Size |
1 1/2in ~ 8in (DN40~DN200) |
|
Pressure |
10bar~20bar (1.0mpa~2.0mpa) |
|
Testing Pressure |
256psi |
|
Medium |
Water/Oil/Air |
|
Medium Temperature |
-25~180℃ |
Material of the Valve |
|
|---|---|
|
Body |
CF8/ CF8M/ CF3/ CF3M/ 2205/ 2507/ 1.4529/ 1.4406 |
|
Disc |
DI/ CF8/ CF8M/ CF3/ CF3M/ 2205/ 2507/ 1.4529/ HC276/ C95400/ C95800 |
|
Stem |
45#/ SS410/ SS416/ SS420/ SS304/ SS316/ SS316L/ 17-4/ 2205/ 2507/ 1.4529/ K500/ CF8/ CF8M/ HC276 |
|
Seat |
EPDM/ NBR/ SI/ FKM/ FPM/ VITON/ PTFE/ HYPALON |
The following are the representative application industries of this valve. Since butterfly valves can be applied to almost all industries (as long as the temperature and pressure are in line), many industries have not been listed.
While heavy-body wafer type valves are typically designed for medium-low pressure applications, JRVAL’s butterfly valve incorporates GOST valve compliance through reinforced body wall thickness and thicker stems, which ensures enhanced safety margins and meets the rigorous strength requirements.
JRVAL can provide a special low-temperature epdm lined butterfly valve capable of withstanding -40°C or even lower, meeting the demands of extremely cold regions like Russia.
For municipal water supply, an integral body design offers greater robustness, while a split body facilitates maintenance on certain large-diameter valves. JRVAL, as a wholesale wafer butterfly valve provider, can supply either type based on specific needs.
Valve bodies are typically coated internally and externally with marine-grade heavy anti-corrosion coatings (usually ≥300μm thick). The stem and disc, often found in our butterfly valve ss316 models, are made from seawater-resistant materials.
For the environmental sector, valve bodies utilize heavy anti-corrosion coatings compliant with GOST standards (e.g., multi-layer epoxy or polyurethane, total thickness ≥300μm). The disc and stem of our ss butterfly valves are made from corrosion-resistant alloys to effectively resist erosion from environmental media.
In the food processing industry, the internal and external surfaces of our stainless steel butterfly valves are highly polished (Ra ≤ 0.8μm, even down to 0.4μm), feature a crevice-free design for easy CIP/SIP cleaning, and reduce bacterial growth risk. The seat fits tightly with the body, ensuring no media retention.
JRVAL as a leading wafer butterfly valve manufacturer offers “Mining Heavy-Duty” butterfly valves, featuring a thickened body (wall thickness increased by 20-30% over standard), reinforced stem and bushings, and an optimized seat fixation method. This design effectively resists high abrasion, high impact, and pipeline vibrations, extending the valve’s service life by over 30%.
JRVAL utilizes specially formulated low-temperature EPDM or PTFE seats, combined with an optimized stem sealing design. This ensures reliable sealing and operation of the center line butterfly valve in environments down to -50°C. Verified by low-temperature cycle testing, the leakage rate still meets Grade A after 50,000 cycles.
Our stainless steel wafer butterfly valve is constructed from premium materials such as CF8M, ensuring long-term performance against aggressive saline environments, complemented by robust seat options for reliable, bubble-tight sealing.
JRVAL offers teflon butterfly valve and viton lined butterfly valve using premium imported or domestic materials like PTFE and FKM. Precision molding and sintering processes ensure chemical stability and sealing performance. The teflon butterfly valve maintains A-grade sealing after 50,000 cycles in harsh acid/alkali environments.
JRVAL engineers tailor materials (body/disc/seat) and structural reinforcement for stainless steel wafer type butterfly valve based on particle characteristics (hardness, size, concentration), flow velocity, temperature, and vibration.
JRVAL centerline valve features thickened bodies, reinforced stems, and optimized disc-stem connections (multi-keyway or spline joints). This design enhances vibration resistance by 40% and withstands high-frequency shocks and particle impacts.
The JRVAL wafer style butterfly valve has a structural length strictly controlled to the EN 558 S20 international standard (compatible with GOST R 54808). Some models feature actuators that are 5-10% smaller than the industry average, making them suitable for narrow installation spaces.
JRVAL cf8m and hastelloy c276 valves pass Charpy V-notch impact tests per GOST 9454-78, ensuring toughness at cryogenic temperatures.
The JRVAL epdm coated butterfly valve is made of SS304L/SS316L stainless steel compliant with GOST 5632. It operates stably above 120°C and can withstand up to 140°C for short periods. Material traceability is ensured, and an EN 10204 3.1 certificate is provided.
Electropolished lug and wafer type butterfly valve with CF3M body and ptfe seat meets SEMI F81 standards for ultra-pure water systems (Ra≤0.38μm).
Our epdm butterfly valve is ideal for HVAC systems, offering resistance to hot water, ethylene glycol, and aging. It operates across -20°C to +130°C (-4°F to +266°F).
JRVAL's wafer butterfly valves have an anti-static design. Conductive materials connect the stem and body, dissipating static charges to the ground during operation. This prevents sparks and ensures compliance with safety standards like GOST 12.1.018-93.
Q: Our medium is strongly acidic/alkaline/contains chloride ions. Standard 304 stainless steel is unsuitable. What solutions do you offer? |
A: We fully understand. For highly corrosive media, we recommend advanced corrosion-resistant materials: ·316L stainless steel (resists moderate acids/alkalis and chloride ions) ·Duplex stainless steel 2205/2507 (superior chloride and stress corrosion cracking resistance) ·Special alloys (e.g., Hastelloy) Our engineers will perform professional material selection based on your specific operating conditions. |
Q: Does 316L stainless steel quality vary between manufacturers? What are JRVAL’s advantages? |
A: Significant variations exist. JRVAL’s competitive strengths include: ·Material Assurance: Rigorous sourcing from certified mills with full traceability and incoming inspection reports. ·Precision Engineering: CNC-controlled machining ensures dimensional accuracy and structural integrity. ·Technical Expertise: Application-driven valve selection to ensure optimal material-process compatibility. We deliver guaranteed material quality and validated performance. |
Q: Can we conduct third-party material testing if needed? |
A: Absolutely. We encourage independent verification. You may perform: ·Chemical composition analysis (ASTM E1086) ·Metallographic examination (ASTM E3) ·Intergranular corrosion testing (ASTM A262) Full material certifications (EN 10204 3.1/3.2) are available upon request. |
Q: What is the service life and warranty period of your valves? |
A: Under proper selection and maintenance: ·Expected service life: 10-15 years* (dependent on operating severity) ·Standard warranty: 12 months from shipment or 18 months from commissioning (whichever occurs first). Extended warranty terms can be negotiated for critical applications. |
Q: How do JRVAL’s prices compare to other brands? |
A: While not the cheapest, JRVAL delivers lifecycle cost optimization: ·Thickened valve bodies (150% of ASME standards) ·Certified corrosion resistance (per ASTM G48/MIL-STD-753) ·Reduced maintenance frequency Our solutions minimize unplanned downtime and total ownership costs, ensuring higher operational ROI. |
The following are the representative application industries of this valve. Since butterfly valves can be applied to almost
all industries (as long as the temperature and pressure are in line), many industries have not been listed.
Oil & Gas Industry
While heavy-body wafer type valves are typically designed for medium-low pressure applications, JRVAL’s butterfly valve incorporates GOST valve compliance through reinforced body wall thickness and thicker stems，which ensures enhanced safety margins and meets the rigorous strength requirements
Power Generation
JRVAL can provide a special low-temperature epdm lined butterfly valve capable of withstanding -40°C or even lower, meeting the demands of extremely cold regions like Russia.
Municipal Water Supply
For municipal water supply, an integral body design offers greater robustness, while a split body facilitates maintenance on certain large-diameter valves. JRVAL, as a wholesale wafer butterfly valve provider, can supply either type based on specific needs
Shipbuilding Industry
Valve bodies are typically coated internally and externally with marine-grade heavy anti-corrosion coatings (usually ≥300μm thick). The stem and disc, often found in our butterfly valve ss316 models, are made from seawater-resistant materials
Environmental Protection Industry
For the environmental sector, valve bodies utilize heavy anti-corrosion coatings compliant with GOST standards (e.g., multi-layer epoxy or polyurethane, total thickness ≥300μm). The disc and stem of our ss butterfly valves are made from corrosion-resistant alloys to effectively resist erosion from environmental media.
Food Processing Industry
In the food processing industry, the internal and external surfaces of our stainless steel butterfly valves are highly polished (Ra ≤ 0.8μm, even down to 0.4μm), feature a crevice-free design for easy CIP/SIP cleaning, and reduce bacterial growth risk. The seat fits tightly with the body, ensuring no media retention.
Mining & Metallurgical Industry
JRVAL as a leading wafer butterfly valve manufacturer offers “Mining Heavy-Duty” butterfly valves, featuring a thickened body (wall thickness increased by 20-30% over standard), reinforced stem and bushings, and an optimized seat fixation method. This design effectively resists high abrasion, high impact, and pipeline vibrations, extending the valve’s service life by over 30%.
Refrigeration & Cold Storage Industry
JRVAL utilizes specially formulated low-temperature EPDM or PTFE seats, combined with an optimized stem sealing design. This ensures reliable sealing and operation of the center line butterfly valve in environments down to -50°C. Verified by low-temperature cycle testing, the leakage rate still meets Grade A after 50,000 cycles.
Seawater Desalination
Our stainless steel wafer butterfly valve is constructed from premium materials such as CF8M, ensuring long-term performance against aggressive saline environments, complemented by robust seat options for reliable, bubble-tight sealing.
Corrosive Environments
JRVAL offers teflon butterfly valve and viton lined butterfly valve using premium imported or domestic materials like PTFE and FKM. Precision molding and sintering processes ensure chemical stability and sealing performance. The teflon butterfly valve maintains A-grade sealing after 50,000 cycles in harsh acid/alkali environments.
Particle Wear Environment
JRVAL engineers tailor materials (body/disc/seat) and structural reinforcement for stainless steel wafer type butterfly valve based on particle characteristics (hardness, size, concentration), flow velocity, temperature, and vibration.
Prone to Oscillating Environments
JRVAL centerline valve features thickened bodies, reinforced stems, and optimized disc-stem connections (multi-keyway or spline joints). This design enhances vibration resistance by 40% and withstands high-frequency shocks and particle impacts.
Space-Constrained Environment
The JRVAL wafer style butterfly valve has a structural length strictly controlled to the EN 558 S20 international standard (compatible with GOST R 54808). Some models feature actuators that are 5-10% smaller than the industry average, making them suitable for narrow installation spaces.
Cryogenic Environment
JRVAL cf8m and hastelloy c276 valves pass Charpy V-notch impact tests per GOST 9454-78, ensuring toughness at cryogenic temperatures.
Water Supply & Sewage Treatment systems
The JRVAL epdm coated butterfly valve is made of SS304L/SS316L stainless steel compliant with GOST 5632. It operates stably above 120°C and can withstand up to 140°C for short periods. Material traceability is ensured, and an EN 10204 3.1 certificate is provided.
Semiconductor Ultrapure Water System
Electropolished lug and wafer type butterfly valve with CF3M body and ptfe seat meets SEMI F81 standards for ultra-pure water systems (Ra≤0.38μm).
HVAC System
Our epdm butterfly valve is ideal for HVAC systems, offering resistance to hot water, ethylene glycol, and aging. It operates across -20°C to +130°C (-4°F to +266°F).
Gas System
JRVAL's wafer butterfly valves have an anti-static design. Conductive materials connect the stem and body, dissipating static charges to the ground during operation. This prevents sparks and ensures compliance with safety standards like GOST 12.1.018-93.
