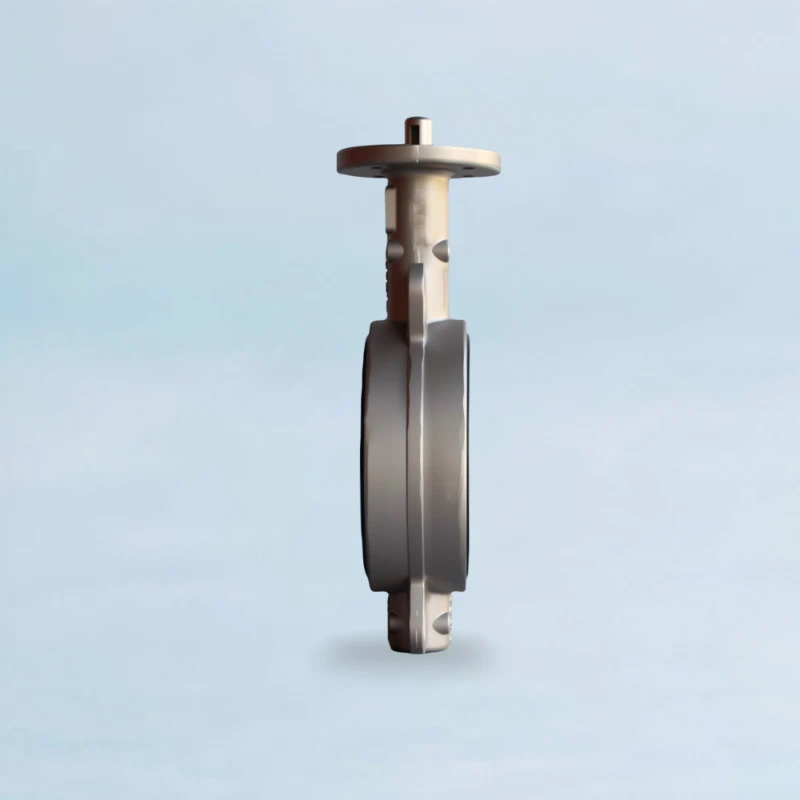

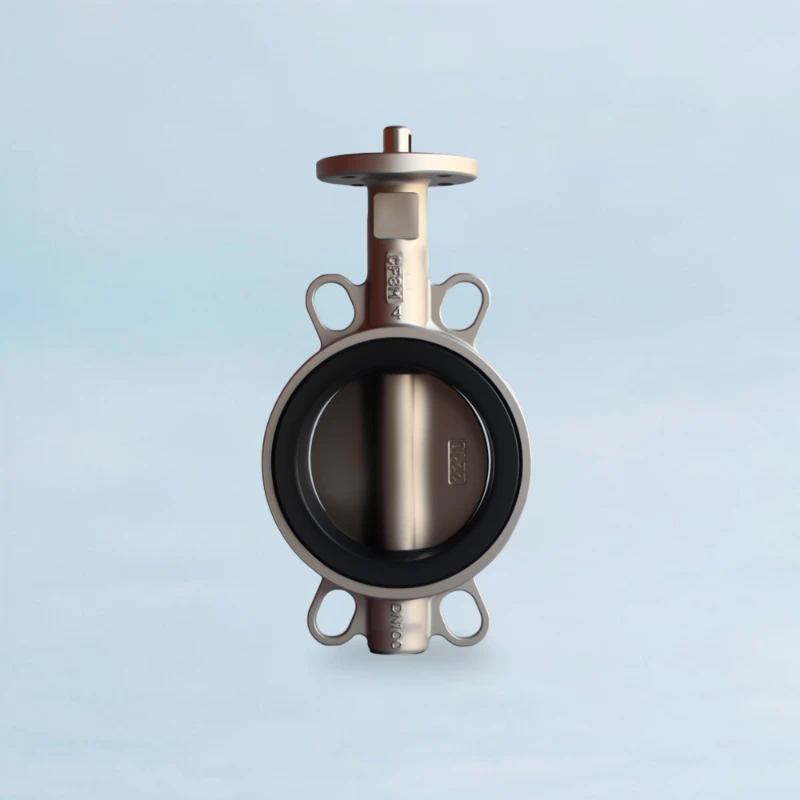

Uni-Fit™ Stainless Steel Wafer Type Butterfly Valve - Bare Shaft

1.5in~48in; PN6~PN20 (Class125~150)

Product Advantages

icon Optimized for Rapid Installation: Engineered with a lightweight, compact wafer-style body that significantly reduces handling effort and mounting time, leading to lower labor costs and minimized system downtime.

icon Universal Flange Compatibility: Seamlessly integrates with a wide spectrum of international flange standards, including JIS (5K/10K/16K), KS etc., ensuring effortless retrofitting and global project applicability.

icon Superior Material Composition: Our valves are cast with chemical compositions at the highest end of international standards. eg. our ASTM A351 CF8 stainless steel contains 9% Nickel—the maximum allowable—to ensure superior corrosion resistance and extended service life

Standards and Certifications

Design and Manufacture: ASME B16.34; ASME VIII; API 609

Leakage Class: API 598 (Bi-directional Zero Leakage)

Side Flange Standards: ANSI 125LB/ 150LB; ASME; AS-D/E; BS; DIN; EN PN6/ PN10/ PN16; GB; GOST; HG/T; JIS 5K/ 10K/ 16K/ 20K; KS etc.

Top Flange (Actuator Mounting) : ISO 5211; GB 90°

Face-to-Face Dimension: ISO 5752; MSS SP-68; ASME B16.10; EN 558-1; API 609

Testing Standards: API 598; EN 12266-1; ISO 5208; BS 6755-1

Certifications: ISO 9001; CE; BV; API 609; API 598; EAC; SIL3；

Technical description

Download

Q&A

Specification of the Valve

Type of Connection	Wafer
Actuation	Round/ Square Head
Size	DN40~DN1200 (1 1/2in~48in )
Pressure	6bar~20bar (0.6mpa~2.0mpa)
Testing Pressure	256psi
Medium	Water, Oil, Gas, Steam, Corrosive Media, Slurry, etc.
Medium Temperature	-25~180℃

Material of the Valve

Body	CF8/ CF8M/ CF3/ CF3M/ 2205/ 2507/ 1.4529/ 1.4406
Disc	DI/ CF8/ CF8M/ CF3/ CF3M/ 2205/ 2507/ 1.4529/ HC276/ C95400/ C95800
Shaft	45#/ SS410/ SS416/ SS420/ SS304/ SS316/ SS316L/ 17-4/ 2205/ 2507/ 1.4529/ K500/ CF8/ CF8M/ HC276
Soft Seat	EPDM/ NBR/ SIL/ FKM/ FPM/ VITON/ UHMWPE/ PTFE/ PFA

High-Density Casting: Zero Porosity Guaranteed

Our butterfly valve stainless bodies are produced from a high-density casting process. This ensures a solid, non-porous structure, completely free from sand holes and other casting defects. The result is superior strength and maximum durability.

Learn More About Our Process

BUILT FOR EFFICIENCY AND COMPATIBILITY

The Uni-Fit™ series is engineered for global applications, combining superior materials with a design focused on rapid installation and universal compatibility, reducing project costs and complexity.

RAPID INSTALLATION DESIGN

The lightweight, compact body of our Wafer Style Butterfly Valve reduces installation time and labor costs. Its streamlined profile allows for easier handling and mounting between flanges, accelerating project completion.

UNIVERSAL FLANGE FIT

Engineered for global markets, the Uni-Fit™ valve is compatible with multiple international flange standards including JIS 5K/10K/16K and KS. This eliminates sourcing complexities, making it a perfect JIS 10K Butterfly Valve for international projects.

PREMIUM MATERIAL GUARANTEE

Our ASTM A351 CF8M Butterfly Valve bodies are cast with Nickel content at the 9% maximum standard. This superior chemical composition ensures enhanced corrosion resistance and a significantly longer service life in demanding applications.

Versatile Solutions for Global Industries

The Uni-Fit™ valve's unique combination of rapid installation and multi-standard compatibility makes it the ideal choice for diverse, fast-paced industrial projects worldwide.

HVAC Retrofitting

The lightweight design simplifies rooftop and mechanical room installations, while universal flange compatibility ensures a perfect fit into existing, varied piping systems. As a leading Wafer Butterfly Valve Supplier, we ensure project timelines are met.

Modular Skid Manufacturing

For pre-fabricated systems, the compact Uni-Fit™ saves valuable space and weight. Standardized dimensions ensure repeatable, efficient assembly, making our Butterfly Valve PN 16 a reliable component for OEM production lines.

Water Parks & Aquariums

The superior corrosion resistance of our high-nickel content Stainless Butterfly Valve is critical for life support systems using chlorinated or saline water. The easy-install design minimizes downtime during maintenance windows.

Shipbuilding & Repair

In confined engine rooms and ballast systems, the space-saving wafer body is indispensable. Our valve's ability to mate with JIS-standard flanges makes it a direct-fit replacement, simplifying dry-dock repairs with a reliable Butterfly Valve JIS 10K.

Food & Beverage Plant Upgrades

During plant upgrades or expansions, our Wafer Type Valve reduces installation time, crucial for minimizing production stoppages. The high-grade stainless steel body meets sanitary requirements for processing lines.

Pulp & Paper Maintenance

The robust construction and superior material composition resist the mildly corrosive media found in paper processing. When specified as a PTFE Lined Butterfly Valve, it handles aggressive chemicals used in bleaching and pulping.

District Energy Systems

For extensive heating and cooling networks, the lightweight design of our valves simplifies installation across large sites. As a trusted Butterfly Valve From China Manufacturer, we provide consistent quality for large-scale infrastructure projects.

Mining Dewatering

In mobile dewatering pump setups, the compact and lightweight nature of our valves is key. We offer bulk supply options, making the Wholesale Wafer Butterfly Valve a cost-effective choice for large mining operations.

Agricultural Irrigation

The valve's simple, quick installation is ideal for seasonal setup and maintenance of large-scale irrigation systems. The durable stainless steel construction ensures a long service life for every Butterfly Valve Valve, even when exposed to the elements.

Ideal for Challenging Installation Scenarios

High-Paced Retrofit Projects

In plant shutdowns where every minute counts, the Uni-Fit™'s lightweight design and self-centering nature between flanges drastically cut down installation time, making it a superior wafer butterfly for time-critical upgrades.

Multi-Standard Piping Systems

For facilities with mixed international equipment, our valve's compatibility with JIS, KS, and other standards simplifies inventory and ensures the right valve is always on hand. It's the ultimate din butterfly valve solution for globalized plants.

Weight-Sensitive Platforms

On offshore platforms, rooftops, or mobile skids where structural weight is a critical design factor, the compact wafer valve design offers significant weight savings over heavier lug or flanged style valves without sacrificing performance.

Routine Maintenance Operations

The through-bolt design allows for rapid removal and replacement of the valve body during planned maintenance. This makes the ss butterfly a preferred choice for systems requiring frequent inspection and service to minimize downtime.

Automated Process Control

Equipped with a standardized ISO 5211 mounting pad, the Uni-Fit™ ensures seamless integration with pneumatic or electric actuators. It is the perfect foundation for a reliable and precise butterfly valve for flow control in any automated system.

Temporary Bypass Lines

During system modifications or emergencies, the ease and speed of installing a 4 wafer butterfly valve are invaluable for setting up temporary bypass piping, allowing main operations to continue with minimal interruption.

Reliability in Corrosive Environments

Saline Atmospheres

For coastal facilities and marine applications, the high-nickel content stainless steel body provides superior resistance to atmospheric and splash-zone corrosion, making our butterfly valve ss316 a durable choice.

Mild Chemical Solutions

The premium CF8/CF8M body offers excellent performance in process lines carrying diluted acids, alkalis, and other chemical solutions, where a standard butterfly valve stainless provides reliable service and long life.

Deionized Water Loops

In high-purity and deionized water systems, which can be aggressive to lesser materials, our high-quality stainless steel prevents leaching and corrosion, protecting both the valve and system purity. A perfect application for a 6 wafer butterfly valve.

Food-Grade Washdown Areas

The external body is resistant to caustic and acidic cleaning agents used in sanitary washdowns. This ensures the valve's exterior integrity and longevity in food, beverage, and pharmaceutical plants using a 3 inch stainless steel butterfly valve.

Humid Industrial Environments

In environments with high humidity and condensation, such as paper mills or cooling tower areas, the superior stainless steel casting prevents external rust and corrosion that could compromise the valve's structural integrity or hinder actuator operation for a butterfly valve wafer type.

Glycol and Cooling Agents

Our valve materials are fully compatible with common industrial coolants like ethylene and propylene glycol. The robust construction ensures a leak-free seal, making it a reliable hvac butterfly valve for critical cooling circuits.

OEM PARTNERSHIP CASE STUDY

How a mid-sized industrial water treatment OEM optimized costs and secured its project timeline by switching to JRVAL's actuator-ready butterfly valves.

Client: A leading system integrator in Southeast Asia specializing in containerized water purification skids for industrial applications.

Project: A large-scale deployment of 80 purification skids for a new textile manufacturing facility, requiring over 500 units of DN80 to DN300 stainless steel butterfly valves.

THE SOURCING DILEMMA: BALANCING COST, RISK, AND INTEGRATION

Mr. Faisal, the Head of Procurement, faced a critical sourcing challenge. Their trusted European valve supplier quoted a 12-week lead time, jeopardizing the project deadline. Meanwhile, low-cost alternatives from unverified suppliers presented significant risks of material non-conformance and dimensional inaccuracies on the critical actuator mounting interface, which would be catastrophic for their standardized assembly line.

THE SOLUTION: A TRANSPARENT & DATA-DRIVEN PARTNERSHIP

Mr. Faisal's team initiated a technical due diligence process with JRVAL. Instead of marketing claims, our engagement focused on verifiable data and process transparency.

Technical & Quality Verification Process

We submitted a complete technical documentation package for review, including:
- Material Test Reports (MTRs) for the specified SS316 (ASTM A351 CF8M) heat lot, confirming Nickel content at 10.2% (Standard requires 9.0-12.0%), ensuring robust corrosion resistance.
- In-house PMI verification report. We were transparent that project-specific third-party witnessing (e.g., by SGS, BV) was available at the client's arrangement and cost—a standard and respected industry practice.
- Pressure Test Certification confirming each valve was tested to 1.1 times its rated pressure (16 bar valves tested at 17.6 bar) with zero leakage according to API 598 Rate A standards.

Precision for Seamless Automation (The "Bare Stem" Advantage)

The core of the client's challenge was actuator integration. We provided:
- Dimensional QC Reports for the first articles, showing the ISO 5211 mounting pad and stem drive dimensions were machined to a tolerance of +/- 0.1mm. This guaranteed flawless mounting of their locally sourced pneumatic actuators, eliminating the need for on-site rework.
- The bare stem configuration provided them the flexibility to select actuators based on their specific control requirements and local availability, optimizing both cost and functionality for their skid design.

Supply Chain Reliability & Production Control

Leveraging our position as a source manufacturer, we offered a level of control unattainable from trading companies.
- Our production plan was built around our in-house foundry and 11 CNC centers within our 81,426 m² facility. This vertical integration allowed us to commit to a firm delivery schedule.
- The total order was fulfilled in 5 weeks, a 58% reduction compared to the 12-week lead time from the European supplier, effectively mitigating the project's primary schedule risk.

QUANTIFIABLE RESULTS & KPIs

The partnership delivered tangible, measurable outcomes that directly impacted the project's bottom line.

Cost Optimization: Achieved a 18% reduction in the total valve procurement cost compared to the incumbent European brand's quote, directly improving the project's profit margin.
Schedule Adherence: Reduced valve delivery lead time from 12 weeks to 5 weeks, enabling on-time completion of the skid assembly and avoiding potential late-delivery penalties.
Quality Assurance: Zero non-conformances (NCRs) were reported during the client's incoming quality inspection and assembly process across all 500+ units.
Long-Term Value: The client benefits from our standard 2-year warranty with free spare part replacement. Post-warranty, the standardized modular seat design ensures maintenance parts can be easily sourced, contributing to a lower Total Cost of Ownership (TCO).

"JRVAL's transparency was the deciding factor. They didn't just give us a price; they provided the complete documentation package we needed for our due diligence. The cost savings were significant, but the real value was in their manufacturing control and reliable lead time. They became a predictable and vital part of our supply chain."

Mr. Faisal Head of Procurement, Industrial Water Systems Integrator

QUALITY & COMPLIANCE CERTIFIED

Our commitment to quality is verified by internationally recognized standards. We provide the documentation to prove it.

Uni-Fit™ Stainless Steel Wafer Type Butterfly Valve - Bare Stem

Ready to streamline your global projects?

Get A Free Sample

Butterfly Valve Dimensions

Download

TECHNICAL & PROCUREMENT FAQ

What does "Universal Flange Compatibility" mean in practice for my project?

It means our Uni-Fit™ valve body is designed to self-center between multiple international flange standards, including JIS 5K/10K/16K, and KS. For procurement managers and engineers, this simplifies inventory, eliminates sourcing errors for global projects, and makes retrofitting existing, varied piping systems significantly faster and more reliable.

How do you guarantee the premium quality of your stainless steel?

As a source manufacturer with our own foundry, we control quality from day one. Every valve is supplied with a Material Test Report (MTR). Specifically for our ASTM A351 CF8 (SS304), we ensure the Nickel content is at the 9% maximum allowable standard, providing superior corrosion resistance and verifiable quality you can trust.

What are the tangible benefits of the "Rapid Installation" design?

The lightweight, compact wafer body directly translates to lower labor costs and reduced project time. It's easier and faster for a single technician to handle and mount, especially in tight spaces or during time-critical plant shutdowns. This design minimizes system downtime and accelerates project completion, directly impacting your bottom line.

Are these valves "actuator-ready" and what standard do they follow?

Yes, absolutely. Our bare shaft valves are designed for seamless automation. They feature a standardized ISO 5211 mounting pad and shaft drive. This guarantees direct, reliable integration with any compliant pneumatic or electric actuator, providing you with the flexibility to use your preferred actuator brand without needing custom brackets or modifications.

What is your warranty policy and how are spare parts handled?

We stand behind our manufacturing with a comprehensive 2-year warranty, which includes free replacement of spare parts like seats or seals. Because our valves are built to international standards, sourcing maintenance parts is straightforward even after the warranty period, ensuring a low Total Cost of Ownership (TCO) for your assets.
