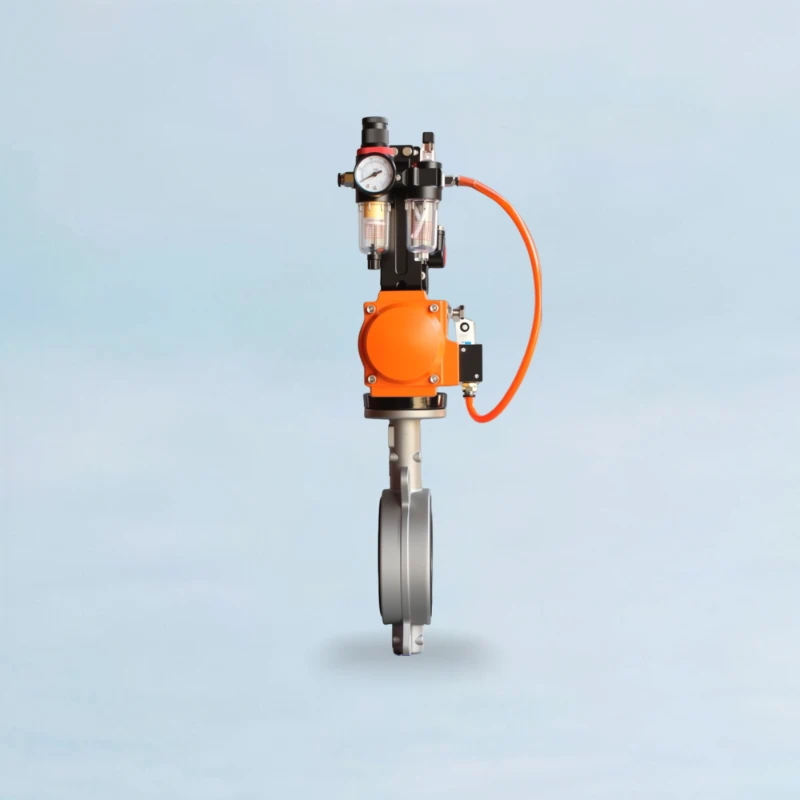

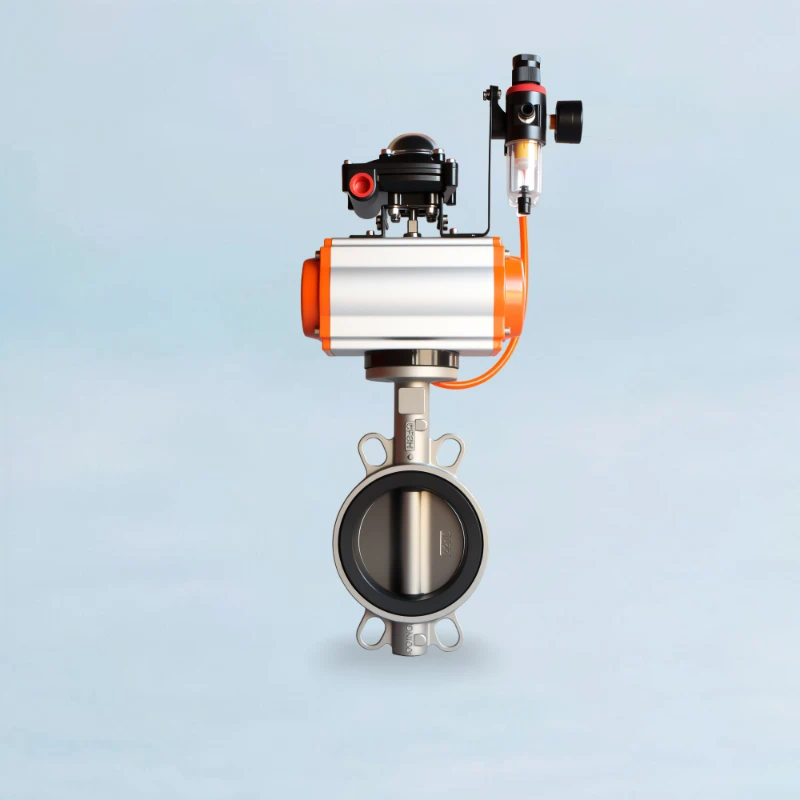

Uni-Fit Series Stainless Steel Wafer Type Butterfly Valve - Pneumatic

1.5in~48in; PN6~PN20 (Class125~150)

Product Advantages

icon Optimized for Rapid Installation: Engineered with a lightweight, compact wafer-style body that significantly reduces handling effort and mounting time, leading to lower labor costs and minimized system downtime.

icon Universal Flange Compatibility: Seamlessly integrates with a wide spectrum of international flange standards, including JIS (5K/10K/16K), KS etc., ensuring effortless retrofitting and global project applicability.

icon Superior Material Composition: Our valves are cast with chemical compositions at the highest end of international standards. eg. our ASTM A351 CF8 stainless steel contains 9% Nickel—the maximum allowable—to ensure superior corrosion resistance and extended service life

Standards and Certifications

Design and Manufacture: ASME B16.34; ASME VIII; API 609

Leakage Class: API 598 (Bi-directional Zero Leakage)

Side Flange Standards: ANSI 125LB/ 150LB; ASME; AS-D/E; BS; DIN; EN PN6/ PN10/ PN16; GB; GOST; HG/T; JIS 5K/ 10K/ 16K/ 20K; KS etc.

Top Flange (Actuator Mounting) : ISO 5211; GB 90°

Face-to-Face Dimension: ISO 5752; MSS SP-68; ASME B16.10; EN 558-1; API 609

Testing Standards: API 598; EN 12266-1; ISO 5208; BS 6755-1

Certifications: ISO 9001; CE; BV; API 609; API 598; EAC; SIL3；

Technical description

Download

Q&A

Specification of the Valve

Type of Connection	Wafer
Actuation	Pneumatic
Size	DN40~DN1200 (1 1/2in~48in )
Pressure	6bar~20bar (Class 125/150)
Testing Pressure	1.5 x Rated Pressure
Medium	Water, Oil, Gas, Steam, Corrosive Media, Slurry, etc.
Medium Temperature	-25~180℃ (Depends on seat material)

Material of the Valve

Body	Stainless Steel: CF8 (304), CF8M (316), CF3 (304L), CF3M (316L), JS1030, 1.4406 Duplex Stainless Steel: 2205, 2507 Austenitic Stainless Steel: 1.4529, CN7M (Alloy 20)
Disc	Cast Iron: DI, CI Stainless Steel: CF8 (304), CF8M (316), CF3 (304L), CF3M (316L), CD3MN (Duplex 2205), CE3MN (Super Duplex 2507), 1.4529 (926) Aluminum Bronze: C95400, C95800 Nickel Alloy: CW6MC (Hastelloy C-276 eq.)
Shaft	Carbon Steel: 45# Stainless Steel: SS410, SS416, SS420; SS304, SS316, SS304L, SS316L; 17-4PH (SS630); Duplex 2205, Super Duplex 2507, 1.4529 Nickel Alloy: Monel K500, Hastelloy C-276
Soft Seat	Elastomers: EPDM, HTEPDM, NBR (Nitrile Rubber / Buna-N), SIL (VMQ), FKM (VITON™), HYPALON™ Plastics: PTFE, PFA, UHMWPE

Actuator Type

Double Acting: Utilizes compressed air to power both the open and close strokes of the valve.

Single Acting / Spring-Return: Uses compressed air for one stroke and a mechanical spring for the return stroke, providing a fail-safe position.

- Normally Closed (NC) / Fail-Close: The spring closes the valve upon loss of air pressure.

- Normally Open (NO) / Fail-Open: The spring opens the valve upon loss of air pressure.

Control Type

On/Off (Discrete): For fully open or fully closed service, providing simple and reliable isolation.

Modulating (Throttling): For precise flow control by positioning the disc at any intermediate angle. Requires an electro-pneumatic positioner.

Special Configurations

Electro-magnetically Released: A specialized double-acting actuator designed for specific safety or emergency shutdown (ESD) applications.

Custom Solutions: Other actuator configurations and accessories are available upon request to meet unique application requirements.

High-Density Casting: Zero Porosity Guaranteed

Our butterfly valve stainless bodies are produced from a high-density casting process. This ensures a solid, non-porous structure, completely free from sand holes and other casting defects. The result is superior strength and maximum durability.

Learn More About Our Process

ENGINEERED FOR AUTOMATED PRECISION & GLOBAL COMPATIBILITY

The Uni-Fit™ series with pneumatic actuation combines superior corrosion resistance with a design optimized for rapid, automated control and universal integration into international piping systems.

Premium Alloy Integrity

We cast our valve bodies with high-end material compositions, such as ensuring Nickel content in our CF8 stainless steel reaches 9% for maximum corrosion resistance, guaranteeing longevity in automated and demanding environments.

Global Project-Ready

Designed for universal flange compatibility (JIS, KS, etc.), the Uni-Fit™ eliminates sourcing complexities for multinational projects. Its lightweight wafer body simplifies logistics and accelerates installation, reducing labor costs.

Seamless Automation Integration

Equipped with a precision-machined ISO 5211 mounting pad, our valves guarantee flawless, direct mounting of pneumatic actuators. This ensures reliable, repeatable performance and easy integration into any PLC or automated control system.

Stainless Steel Pneumatic Butterfly Valve

Adaptable Automation Across Key Sectors

The Uni-Fit Series pneumatic valve's rapid response, reliable performance, and universal design make it the preferred choice for automated flow control in a wide range of demanding industries.

Chemical Dosing Skids

On compact OEM skids, our valve's precise control and quick actuation are essential for accurate chemical blending. The reliable performance of each Pneumatic Operated Butterfly Valve ensures process consistency.

Water Treatment Plants

In filtration and backwash cycles, our valve enables fully automated sequences. The robust construction ensures long-term reliability, making each Automatic Butterfly Valve a critical component for municipal and industrial water systems.

Pharmaceutical Manufacturing

For utility lines like purified water (WFI) and clean steam, our valves provide sanitary and reliable control. We offer high-purity SS 316 Butterfly Valves to meet the stringent material requirements of the industry.

Automated Fire Suppression Systems

In deluge and pre-action systems, rapid and dependable valve opening is critical. A pneumatically operated 4 Inch Butterfly Valve With Actuator provides the fail-safe performance required for life safety applications.

Industrial Laundry Systems

Our valves automate the control of water, steam, and detergents, withstanding high cycles and harsh chemicals. The compact design of the Stainless Steel Wafer Butterfly Valve simplifies installation in crowded mechanical rooms.

Brewery & Distillery Automation

From mash tuns to fermentation tanks, our valves offer precise temperature and flow control. The integrated Pneumatic Butterfly Valve Actuator allows for seamless integration with brewery control software for repeatable recipes.

Textile Dyeing & Finishing

Automated dyeing machines rely on our valves for precise sequencing of dyes, chemicals, and rinse water. The robust Actuator Valve Butterfly package endures the demanding, high-cycle environment of modern textile mills.

Power Plant Auxiliary Systems

For cooling water circuits, ash handling, and flue gas desulfurization, reliable automated valves are essential. An 8 Inch Butterfly Valve With Actuator provides the necessary torque and durability for these heavy-duty services.

Semiconductor Manufacturing (UPW)

In ultra-pure water (UPW) systems, material purity is paramount to prevent contamination. The high-grade stainless steel of a CF8M Butterfly Valve ensures no leaching, protecting sensitive manufacturing processes.

Excelling in Demanding Operational Environments

High-Cycle Automation

Designed for millions of cycles, the double acting pneumatic actuator butterfly valve provides exceptional endurance in applications like batch processing and packaging lines where constant, rapid actuation is required.

Hazardous / Explosion-Proof Areas

In environments with flammable gases or dust, pneumatic actuation is inherently safer than electric alternatives. The pneumatic cylinder operated butterfly valve eliminates ignition sources, making it ideal for Class 1, Division 1 areas.

Remote or Unmanned Locations

For pump stations or tank farms with limited personnel access, the reliability of an auto butterfly valve is crucial. It provides dependable flow control that can be managed from a central control room, minimizing site visits.

Space-Constrained Machinery

The compact footprint of a wafer style butterfly valve is a significant advantage over bulky ball or gate valves, making it the perfect choice for installation within OEM machinery, modular skids, and tight pipe racks.

Integrated PLC Control Systems

For sophisticated process control, our valves can be equipped with positioners and limit switches, turning a standard butterfly valve with pneumatic actuator and positioner into a precise modulating control device fully integrated with your plant's PLC/DCS.

Systems Requiring Fast Response

In emergency shutdown (ESD) systems or quick diversion applications, the rapid stroke speed of an actuator operated butterfly valve is far superior to slower, multi-turn valves, ensuring immediate process changes when needed.

Engineered for Corrosive Service

Chlorinated Water Systems

The superior composition of our stainless steel provides excellent resistance to the corrosive effects of chlorinated water found in cooling towers, swimming pools, and disinfection systems, ensuring the integrity of the ss body butterfly valve.

Seawater Cooling Loops

For shipboard systems and coastal industrial plants, a marine butterfly valve made from SS316 or Duplex stainless steel is essential to combat the highly corrosive nature of salt water and prevent premature failure.

Process Effluent Treatment

Industrial wastewater often contains a mix of unknown and varying chemicals. A durable lined butterfly valve with a stainless body provides the first line of defense, while the liner protects against the specific chemical stream.

Fertilizer Production

The production of fertilizers involves handling abrasive slurries and corrosive compounds like phosphoric and sulfuric acids. The robust construction of a ss 304 butterfly valve provides a cost-effective solution for these aggressive media.

Acidic Food & Beverage Products

Handling products like citrus juices, tomato paste, and vinegar requires materials that resist acid corrosion and prevent metallic taste contamination. A stainless steel wafer type butterfly valve is the industry standard for these applications.

Sterilization Chemicals (CIP/SIP)

Clean-in-place and sterilize-in-place systems use aggressive chemicals and high temperatures. A teflon lined butterfly valve offers superior chemical inertness, ensuring valve integrity during repeated sanitation cycles.

OEM PARTNERSHIP CASE STUDY

How a mid-sized industrial water treatment OEM optimized costs and secured its project timeline by switching to JRVAL's actuator-ready butterfly valves.

Project: A large-scale deployment of 80 purification skids for a new textile manufacturing facility, requiring over 500 units of DN80 to DN300 stainless steel butterfly valves.

THE SOURCING DILEMMA: BALANCING COST, RISK, AND INTEGRATION

Mr. Tan, the Head of Procurement, faced a critical sourcing challenge. Their trusted European valve supplier quoted a 12-week lead time, jeopardizing the project deadline. Meanwhile, low-cost alternatives from unverified suppliers presented significant risks of material non-conformance and dimensional inaccuracies on the critical actuator mounting interface, which would be catastrophic for their standardized assembly line.

THE SOLUTION: A TRANSPARENT & DATA-DRIVEN PARTNERSHIP

Mr. Tan's team initiated a technical due diligence process with JRVAL. Instead of marketing claims, our engagement focused on verifiable data and process transparency.

Technical & Quality Verification Process

We submitted a complete technical documentation package for review, including:
- Material Test Reports (MTRs) for the specified SS316 (ASTM A351 CF8M) heat lot, confirming Nickel content at 12% (Standard requires 9.0-12.0%), ensuring robust corrosion resistance.
- In-house PMI verification report. We were transparent that project-specific third-party witnessing (e.g., by SGS, BV) was available at the client's arrangement and cost—a standard and respected industry practice.
- Pressure Test Certification confirming each valve was tested to 1.1 times its rated pressure (16 bar valves tested at 17.6 bar) with zero leakage according to API 598 Rate A standards.

Precision for Seamless Automation (The "Bare Stem" Advantage)

The core of the client's challenge was actuator integration. We provided:
- Dimensional QC Reports for the first articles, showing the ISO 5211 mounting pad and stem drive dimensions were machined to a tolerance of +/- 0.1mm. This guaranteed flawless mounting of their locally sourced pneumatic actuators, eliminating the need for on-site rework.
- The bare stem configuration provided them the flexibility to select actuators based on their specific control requirements and local availability, optimizing both cost and functionality for their skid design.

Supply Chain Reliability & Production Control

Leveraging our position as a source manufacturer, we offered a level of control unattainable from trading companies.
- Our production plan was built around our in-house foundry and 11 CNC centers within our 81,426 m² facility. This vertical integration allowed us to commit to a firm delivery schedule.
- The total order was fulfilled in 5 weeks, a 58% reduction compared to the 12-week lead time from the European supplier, effectively mitigating the project's primary schedule risk.

QUANTIFIABLE RESULTS & KPIs

The partnership delivered tangible, measurable outcomes that directly impacted the project's bottom line.

Cost Optimization: Achieved an 18% reduction in the total valve procurement cost compared to the incumbent European brand's quote, directly improving the project's profit margin.
Schedule Adherence: Reduced valve delivery lead time from 12 weeks to 5 weeks, enabling on-time completion of the skid assembly and avoiding potential late-delivery penalties.
Quality Assurance: Zero non-conformances (NCRs) were reported during the client's incoming quality inspection and assembly process across all 500+ units.
Long-Term Value: The client benefits from our standard 2-year warranty with free spare part replacement. Post-warranty, the standardized modular seat design ensures maintenance parts can be easily sourced, contributing to a lower Total Cost of Ownership (TCO).

"JRVAL's transparency was the deciding factor. They didn't just give us a price; they provided the complete documentation package we needed for our due diligence. The cost savings were significant, but the real value was in their manufacturing control and reliable lead time. They became a predictable and vital part of our supply chain."

Mr. Tan Head of Procurement, Singapore-based EPC firm.

QUALITY & COMPLIANCE CERTIFIED

Our commitment to quality is verified by internationally recognized standards. We provide the documentation to prove it.

Uni-Fit™ Pneumatic Stainless Steel Wafer Valve

Ready to automate and streamline your global projects?

Get A Free Sample

Butterfly Valve Dimensions

Download

TECHNICAL & PROCUREMENT FAQ

What does "Universal Flange Compatibility" mean in practice for my project?

It means our Uni-Fit Series valve body is designed to self-center between multiple international flange standards, including JIS 5K/10K/16K, and KS. For procurement managers and engineers, this simplifies inventory, eliminates sourcing errors for global projects, and makes retrofitting existing, varied piping systems significantly faster and more reliable.

How do you guarantee the premium quality of your stainless steel?

As a source manufacturer with our own foundry, we control quality from day one. Every valve is supplied with a Material Test Report (MTR). Specifically for our ASTM A351 CF8 (SS304), we ensure the Nickel content is at the 9% maximum allowable standard, providing superior corrosion resistance and verifiable quality you can trust.

What are the tangible benefits of the "Rapid Installation" design?

The lightweight, compact wafer body directly translates to lower labor costs and reduced project time. It's easier and faster for a single technician to handle and mount, especially in tight spaces or during time-critical plant shutdowns. This design minimizes system downtime and accelerates project completion, directly impacting your bottom line.

Are these valves "actuator-ready" and what standard do they follow?

Yes, absolutely. Our bare stem valves are designed for seamless automation. They feature a standardized ISO 5211 mounting pad and stem drive. This guarantees direct, reliable integration with any compliant pneumatic or electric actuator, providing you with the flexibility to use your preferred actuator brand without needing custom brackets or modifications.

What is your warranty policy and how are spare parts handled?

We stand behind our manufacturing with a comprehensive 2-year warranty, which includes free replacement of spare parts like seats or seals. Because our valves are built to international standards, sourcing maintenance parts is straightforward even after the warranty period, ensuring a low Total Cost of Ownership (TCO) for your assets.
